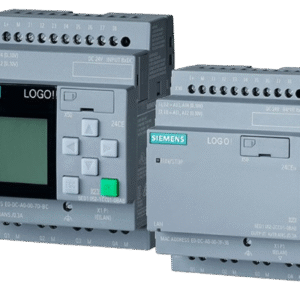

Logo Basic Modules Siemens

The Siemens Logo! Basic Modules are part of the Logo! PLC series, offering an easy-to-use and cost-effective solution for small-scale automation projects. These compact PLC modules are perfect for controlling simple machines, processes, or home automation systems, where traditional, large-scale PLCs might be overkill. Despite their small size, Logo! modules pack a punch with their powerful functionality and ease of use.

The Logo! basic modules come with built-in digital and analog inputs and outputs, allowing you to connect sensors, switches, motors, and other field devices directly to the controller. The modular design enables users to expand the system by adding additional I/O modules, communication modules, and other accessories to suit the requirements of the specific application.

Key Features of Siemens Logo! Basic Modules:

1. Compact and Modular Design:

   • The Logo! modules are small and easy to install, making them ideal for space-constrained applications.

   • The system is modular, allowing users to easily expand the basic module with additional I/O modules, analog inputs, and output extensions.

2. Ease of Use:

   • Logo! Basic Modules come with an intuitive programming interface, typically using the Logo! Soft Comfort software, which is graphical and user-friendly.

   • Programming is quick and simple, with drag-and-drop functionality that doesn’t require advanced PLC programming knowledge, making them perfect for beginners or quick-turnaround projects.

   • They also feature a built-in LCD for direct programming and monitoring without needing a separate HMI or computer.

3. Digital and Analog I/O:

   • Digital I/O options typically include inputs for sensors, switches, and buttons, and outputs for controlling relays, lights, and motors.

   • Analog I/O modules are available, allowing for precise control in applications such as temperature, light level, or pressure regulation.

4. Integrated Communication:

   • The Logo! modules support Ethernet or Modbus communication for remote monitoring and control, enabling seamless integration with larger systems or SCADA platforms.

   • Some models include RS-232 or RS-485 ports for serial communication, expanding the potential for integrating with other devices in the system.

5. Flexible Applications:

   • Suitable for a wide range of applications such as home automation, pump control, lighting systems, small-scale machinery control, and basic process control.

   • Common applications include controlling gates, lighting, HVAC systems, small conveyor belts, or even monitoring tank levels and controlling pumps in water treatment systems.

6. Advanced Features (For Certain Models):

   • Clock Functions: Allows scheduling and time-based control for applications like lighting and heating systems.

   • Ethernet Connectivity (on advanced modules): Enables remote access, control, and monitoring via web browsers or through a SCADA interface.

   • Data Logging: Some models can log data for historical analysis, useful in monitoring system performance and tracking operational trends.

7. Cost-Effective Automation Solution:

   • The Logo! modules are an economical solution for small projects that do not require the complexity or high cost of traditional PLCs.

   • They are ideal for educational purposes, DIY projects, or small businesses looking for simple control solutions without breaking the bank.

8. Energy-Efficient:

   • Designed to operate on low power, these modules are energy-efficient, making them ideal for applications where low energy consumption is a priority.

Applications:

• Home Automation: Control lighting, heating, blinds, and security systems.

• Machine Control: Manage small machines like conveyors, packaging systems, and mixers.

• Building Automation: Regulate temperature, lighting, and other building systems.

• Agricultural Automation: Control irrigation systems, ventilation, and pumps for small farms or greenhouses.

• Traffic Control: Manage simple traffic light systems or pedestrian crossing controls.

• Water and Pump Control: Monitor and control water levels, pumps, and valves in small treatment plants or storage systems.

Conclusion:

The Siemens Logo! Basic Modules provide a simple yet effective solution for small-scale automation projects. They combine ease of use, flexibility, and expandability in a cost-effective package, making them perfect for users who need a reliable, compact controller without the complexity and expense of larger PLC systems. Whether you’re automating small machines, home systems, or simple industrial processes, the Siemens Logo! series provides everything you need to get the job done quickly and efficiently.
